加工中心编程实例教学—第四篇

文章出处:成海加工中心 发表时间:2020-06-06

通过上几期的了解,相信看官大大对加工中心编程的常见加工类型有了新的掌握。今天给大家带来的是较为复杂的两者加工类型,分别是旋转加工和综合零件加工。

实例九 旋转加工
加工中心编程

参考程序:

O0001;

G54 G40;

G69;

M03 S700;

G68 X0 Y0 R30.0;

G00 X0 Y0;

Z50.0 M08;

Z5.0;

G01 Z-5.0 F50;

G41 D01 G01 X25.0 Y10.0 F100;

G03 X15.0 Y20.0 R10.0;

G01 X-15.0;

G03 X-25.0 Y10.0 R10.0;

G01 Y-10.0;

G03 X-15.0 Y-20.0 R10.0;

G01 X15.0;

G03 X25.0 Y-10.0 R10.0;

G01 X25.0 Y10.0;

G40 G01 X0 Y0;

G00 Z150.0 M09;

M30;

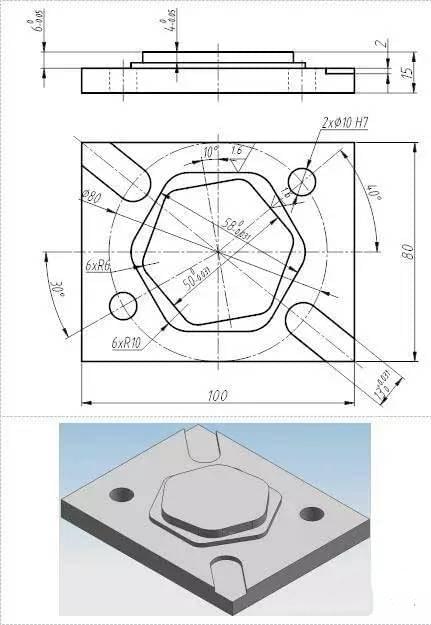

实例十 综合零件加工
加工中心编程

参考程序:

(1)正六边形加工程序

O0001;

G90 G40 G21 G17 G94;

G91 G28 Z0;

G90 G54 M03 S400;

G00 X0 Y55.0;

Z5.0 M08;

G01 Z-6. F60;

G41 D01 G01 X0 Y29.0 F100;

X10.97;

G02 X19.63 Y24.0 R10.0;

G01 X30.60 Y5.0;

G02 Y-5.0 R10.0;

G01 X19.63 Y-24.0;

G02 X10.97 Y-29.0 R10.0;

G01 X-10.97;

G02 X-19.63 Y-24.0 R10.0;

G01 X-30.60 Y-5.0;

G02 Y5.0 R10.0;

G01 X-19.63 Y24.0;

G02 X-10.97 Y29.0 R10.0;

G01 X0;

G40 G01 X0 Y55.0;

G00 Z50.0 M09;

G91 G28 Z0;

M30;

(2)斜六边形加工主程序

O0002;(主程序)

G90 G40 G21 G17 G94 G69;

G91 G28 Z0;

G90 G68 X0 Y0 R10.0;

M98 P0003;

G69;

G91 G28 Z0;

M30;

O0003;(子程序)

G90 G54 M03 S400;

G00 X0 Y40.0;

Z5.0 M08;

G01 Z-4. F60;

G41 D01 G01 X0 Y25.0 F100;

X10.97;

G02 X16.17 Y22.0 R6.0;

G01 X27.14 Y3.0;

G02 Y-3.0 R6.0;

G01 X16.17 Y-22.0;

G02 X10.97 Y-25.0 R6.0;

G01 X-10.97;

G02 X-16.17 Y-22.0 R6.0;

G01 X-27.14 Y-3.0;

G02 Y3.0 R6.0;

G01 X-16.17 Y22.0;

G02 X-10.97 Y25.0 R6.0;

G01 X0;

G40 G01 X0 Y40.0;

G00 Z50.0 M09;

M99;

(3)凹槽加工程序

O0004;(主程序)

G90 G40 G21 G17 G94;

G54 M03 S680;

GO0 X60 Y-50;

Z5.0 M08;

M98 P0005;

G51.1 X0 Y0 ;

M98 P0005;

G50.1 X0 Y0 ;

G0 Z100.0 M09;

M30

O0005;(子程序)

G00 X56.0 Y-46.0;

G01 Z-8.0 F50;

G41 D04 G01 X52.34 Y-33.55 F ;

X34.88 Y-19.58;

G3 X26.76 Y-29.73 R6.5;

G1 X41.94 Y-41.87;

G40 G01 X56.0 Y-46.0;

G00 Z5.0;

M99;

(4)孔加工程序

O0006;

G91 G28 Z0;

M06 T05;

G90 G40 G21 G17 G94 G15;

G54 M03 S1500;

GO0 X0 Y0;

G43 H05 G00 Z20.0;

G16 G00 X40.0 Y40.0;

G99 G81 Z-9.0 R5.0 F60;

G00 X40.0 Y210.0;

G98 G81 Z-9.0 R5.0 F60;

G15;

G91 G28 Z0;

M06 T06;

G90 G15 G54 M3 S500;

GO0 X0 Y0;

G43 H06 G00 Z20.0;

G16 G00 X40.0 Y40.0;

G99 G81 Z-20.0 R5.0 F60;

G00 X40.0 Y210.0;

G98 G81 Z-20.0 R5.0 F60;

G15;

G91 G28 Z0;

M06 T07;

G90 G15 G54 M03 S450;

GO0 X0 Y0;

G43 H07 G00 Z20.0;

G16 G00 X40.0 Y40.0;

G99 G81 Z-20.0 R5.0 F50;

G00 X40.0 Y210.0;

G98 G81 Z-20.0 R5.0 F50;

G15;

G91 G28 Z0;

M06 T08;

G90 G15 G54 M03 S500;

GO0 X0 Y0;

G43 H08 G00 Z20;

G16 G00 X40.0 Y40.0;

G99 G82 Z-10.0 R5.0 P2000 F60;

G00 X40.0 Y210.0;

G99 G82 Z-10.0 R5.0 P2000 F60;

G15;

G91 G28 Z0;

M06 T09;

G90 G15 G54 M03 S50;

GO0 X0 Y0;

G43 H09 G00 Z20.0;

G16 G00 X40.0 Y40.0;

G99 G85 Z-18.0 R5.0 F40;

G00 X40.0 Y210.0

G98 G85 Z-18.0 R5.0 F40;

G15;

G91 G28 Z0;

M30;
